Ecuación de la Difracción Oblicua¶

En este notebook se va a abordar el problema de la Difracción Oblicua, dónde se calcularán los coeficientes de difracción en una zona de sombra que alberga un dique.

A partir de una demostración que puede consultarse en la referencia, Penney y Price (1952) obtuvieron una solución en polares para el coeficiente de difracción tal que:

\[ K_d = \left | I\left ( -\sqrt{\frac{4kr}{\pi}}\sin \frac{\alpha -\theta}{2}e^{-ikr\cos\left ( \alpha-\theta \right )} \right ) + I\left ( -\sqrt{\frac{4kr}{\pi}}\sin \frac{\alpha +\theta}{2}e^{-ikr\cos\left ( \alpha+\theta \right )} \right ) \right | \]

dónde

\[ I(\lambda)=\frac{1+C(\lambda)+S(\lambda)}{2}+i\frac{C(\lambda)-S(\lambda)}{2} \]

y $C(\lambda)$ y $S(\lambda)$ son las integrales de Fresnel definidas como:

\[ C(\lambda)=\int_{0}^{\lambda}\cos\frac{\pi\lambda^2}{2}d\lambda \qquad S(\lambda)=\int_{0}^{\lambda}\sin\frac{\pi\lambda^2}{2}d\lambda \]

Importamos las librerías necesarias¶

import warnings
warnings.filterwarnings("ignore")

# import maths
import os
import os.path as op
import sys

# arrays
import numpy as np
import xarray as xr
from sympy import *

# import matplotlib
import matplotlib
import matplotlib.pyplot as plt
from matplotlib.animation import FuncAnimation
import plotly.graph_objects as go
import plotly.io as pio
pio.renderers.default = 'iframe_connected'

from IPython.display import HTML # diplay anim
matplotlib.rcParams['animation.embed_limit'] = 2**32
plt.style.use('dark_background')

sys.path.insert(0, os.path.join(os.getcwd()  , '..', '..', '..'))

# dependencies
if(os.path.isdir('waves-main')): #thebe
    os.chdir('waves-main')
from lib.analitic import *

if(os.path.isdir('data')):
    p_data = op.abspath(op.join(os.getcwd(), 'data')) # thebe
else:
    p_data = op.abspath(op.join(os.getcwd(),'..', '..', '..', 'data')) # notebook

definimos las ecuaciones / variables¶

# load all the symbols
k, r, pi, alpha, theta = symbols('k r pi alpha theta')
lambdaa = symbols('lambda')

# we first define the K_d function
K_d = Function('K_d')(k,r,alpha,theta)
# but also other important functions
C = Function('C')(lambdaa)
C = integrate(cos(pi*lambdaa**2/2),(lambdaa,0,lambdaa))
S = Function('S')(lambdaa)
S = integrate(sin(pi*lambdaa**2/2),(lambdaa,0,lambdaa))
I_l = Function('I')(lambdaa)
I_l = (1+C+S)/2 + I*(C-S)/2

K_d

\[\displaystyle \operatorname{K_{d}}{\left(k,r,\alpha,\theta \right)}\]

I_l

\[\displaystyle \frac{i \left(\frac{\sqrt{\pi} C\left(\frac{\lambda \sqrt{\pi}}{\sqrt{\pi}}\right) \Gamma\left(\frac{1}{4}\right)}{4 \sqrt{\pi} \Gamma\left(\frac{5}{4}\right)} - \frac{3 \sqrt{\pi} S\left(\frac{\lambda \sqrt{\pi}}{\sqrt{\pi}}\right) \Gamma\left(\frac{3}{4}\right)}{4 \sqrt{\pi} \Gamma\left(\frac{7}{4}\right)}\right)}{2} + \frac{1}{2} + \frac{\sqrt{\pi} C\left(\frac{\lambda \sqrt{\pi}}{\sqrt{\pi}}\right) \Gamma\left(\frac{1}{4}\right)}{8 \sqrt{\pi} \Gamma\left(\frac{5}{4}\right)} + \frac{3 \sqrt{\pi} S\left(\frac{\lambda \sqrt{\pi}}{\sqrt{\pi}}\right) \Gamma\left(\frac{3}{4}\right)}{8 \sqrt{\pi} \Gamma\left(\frac{7}{4}\right)}\]

\[\displaystyle \frac{\sqrt{\pi} C\left(\frac{\lambda \sqrt{\pi}}{\sqrt{\pi}}\right) \Gamma\left(\frac{1}{4}\right)}{4 \sqrt{\pi} \Gamma\left(\frac{5}{4}\right)}\]

\[\displaystyle \frac{3 \sqrt{\pi} S\left(\frac{\lambda \sqrt{\pi}}{\sqrt{\pi}}\right) \Gamma\left(\frac{3}{4}\right)}{4 \sqrt{\pi} \Gamma\left(\frac{7}{4}\right)}\]

K_d = abs(I_l.subs(lambdaa,-sqrt(4*k*r/pi)*sin((alpha-theta)/2))*exp(-I*k*r*cos(alpha-theta)) + \
          I_l.subs(lambdaa,-sqrt(4*k*r/pi)*sin((alpha+theta)/2))*exp(-I*k*r*cos(alpha+theta)))

K_d

\[\displaystyle \left|{\left(\frac{i \left(- \frac{\sqrt{\pi} C\left(\frac{2 \sqrt{\pi} \sqrt{\frac{k r}{\pi}} \sin{\left(\frac{\alpha}{2} - \frac{\theta}{2} \right)}}{\sqrt{\pi}}\right) \Gamma\left(\frac{1}{4}\right)}{4 \sqrt{\pi} \Gamma\left(\frac{5}{4}\right)} + \frac{3 \sqrt{\pi} S\left(\frac{2 \sqrt{\pi} \sqrt{\frac{k r}{\pi}} \sin{\left(\frac{\alpha}{2} - \frac{\theta}{2} \right)}}{\sqrt{\pi}}\right) \Gamma\left(\frac{3}{4}\right)}{4 \sqrt{\pi} \Gamma\left(\frac{7}{4}\right)}\right)}{2} + \frac{1}{2} - \frac{\sqrt{\pi} C\left(\frac{2 \sqrt{\pi} \sqrt{\frac{k r}{\pi}} \sin{\left(\frac{\alpha}{2} - \frac{\theta}{2} \right)}}{\sqrt{\pi}}\right) \Gamma\left(\frac{1}{4}\right)}{8 \sqrt{\pi} \Gamma\left(\frac{5}{4}\right)} - \frac{3 \sqrt{\pi} S\left(\frac{2 \sqrt{\pi} \sqrt{\frac{k r}{\pi}} \sin{\left(\frac{\alpha}{2} - \frac{\theta}{2} \right)}}{\sqrt{\pi}}\right) \Gamma\left(\frac{3}{4}\right)}{8 \sqrt{\pi} \Gamma\left(\frac{7}{4}\right)}\right) e^{- i k r \cos{\left(\alpha - \theta \right)}} + \left(\frac{i \left(- \frac{\sqrt{\pi} C\left(\frac{2 \sqrt{\pi} \sqrt{\frac{k r}{\pi}} \sin{\left(\frac{\alpha}{2} + \frac{\theta}{2} \right)}}{\sqrt{\pi}}\right) \Gamma\left(\frac{1}{4}\right)}{4 \sqrt{\pi} \Gamma\left(\frac{5}{4}\right)} + \frac{3 \sqrt{\pi} S\left(\frac{2 \sqrt{\pi} \sqrt{\frac{k r}{\pi}} \sin{\left(\frac{\alpha}{2} + \frac{\theta}{2} \right)}}{\sqrt{\pi}}\right) \Gamma\left(\frac{3}{4}\right)}{4 \sqrt{\pi} \Gamma\left(\frac{7}{4}\right)}\right)}{2} + \frac{1}{2} - \frac{\sqrt{\pi} C\left(\frac{2 \sqrt{\pi} \sqrt{\frac{k r}{\pi}} \sin{\left(\frac{\alpha}{2} + \frac{\theta}{2} \right)}}{\sqrt{\pi}}\right) \Gamma\left(\frac{1}{4}\right)}{8 \sqrt{\pi} \Gamma\left(\frac{5}{4}\right)} - \frac{3 \sqrt{\pi} S\left(\frac{2 \sqrt{\pi} \sqrt{\frac{k r}{\pi}} \sin{\left(\frac{\alpha}{2} + \frac{\theta}{2} \right)}}{\sqrt{\pi}}\right) \Gamma\left(\frac{3}{4}\right)}{8 \sqrt{\pi} \Gamma\left(\frac{7}{4}\right)}\right) e^{- i k r \cos{\left(\alpha + \theta \right)}}}\right|\]

definir coordenadas y parámetros¶

# define polar coordinates
from sympy.abc import x, y
r = sqrt(x**2+y**2) # these are the polar coordinates
alpha = np.pi/2 - atan(x/y)

# fixed parameters for the wave
g_value = 9.8 # m / s^2
T_value = 8 # seconds
w_value = 2*np.pi/T_value
h_value = 5 # depth (meters)
# derived parameters for the wave
k_value = w_value**2/g_value
# waves.Waves(h_value,T=T_value).k # wave number
l_value = 2*np.pi/k_value

# get diffraction coefficients for (x,y)
x_range_nodes = (-400,800,50)
y_range_nodes = (1,1000,50)
k_diff = np.zeros((x_range_nodes[2],y_range_nodes[2]))

for i,xs in enumerate(np.linspace(*x_range_nodes)):

    for j,ys in enumerate(np.linspace(*y_range_nodes)):

        print(f'Calculating K_diff in ({xs},{ys}) -- in meters', end='\r')

        k_diff[i,j] = float(
            K_d.evalf(subs={
                'k':k_value,'theta':np.pi/2,'pi':np.pi,
                'r':r.evalf(subs={'x':xs,'y':ys}),
                'alpha': alpha.evalf(subs={'x':xs,'y':ys}),
            })
        )

xr.Dataset(
    {'K_diff':(('x','y'),k_diff)},
    coords={'x':np.linspace(*x_range_nodes),
            'y':np.linspace(*y_range_nodes)}
).K_diff.to_netcdf(op.join(p_data, 'diff_coeffs_test.nc'))

Calculating K_diff in (800.0,1000.0) -- in meters- in meterss- in meterssss

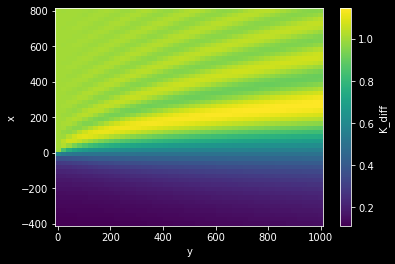

xr.open_dataarray(op.join(p_data, 'diff_coeffs_test.nc')).plot()
plt.show()

$../../../../_images/DifraccionOblicua_19_0.png$

fig = go.Figure(data=[
    go.Surface(
        z=xr.open_dataarray(op.join(p_data, 'diff_coeffs_test.nc')).to_dataframe().values.reshape(50,50).T,
        colorscale='jet',cmin=0.2,cmax=1.3
    ),
    go.Surface(
        z=np.ones((50,50)),showscale=False,colorscale='earth',opacity=0.6
    )
])
fig.show()
